from functools import partial

import contextily as cx
import geodatasets
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib_inline
import numpy as np
import pandas as pd
from IPython.display import Image
from pysgn import geo_erdos_renyi_network, graph_to_gdf, sample_points
from shapely.geometry import Point

matplotlib_inline.backend_inline.set_matplotlib_formats("svg")

Sample Point Geometries

sample_points generates point geometries for node synthesis inside a spatial domain.

By default, candidate points are sampled uniformly over the final domain, then filtered with geometric rejection when needed.

• If you provide only bbox, points are sampled uniformly in that rectangle.

• If you provide only polygon, points are sampled in the polygon area.

• If both are provided, the effective domain is their intersection.

This means the default sampling density is constant over the final domain (that is, no distance-decay or preference weighting is applied unless you provide a custom sampler).

Default Uniform Sampling in a Bounding Box

points_gdf = sample_points(
    300,
    bbox=(-5000, -5000, 5000, 5000),
    random_state=42,
)

_, ax = plt.subplots(1, 1, figsize=(6, 6))
points_gdf.plot(ax=ax, color="tab:blue", markersize=5)
ax.set_title("Sampled points in a bounding box")
ax.set_aspect("equal")
plt.show()

points_gdf.head()

	geometry
0	POINT (2739.56 2789.964)
1	POINT (-611.216 -3654.478)
2	POINT (3585.979 360.68)
3	POINT (1973.68 142.229)
4	POINT (-4058.227 3575.721)

Uniform Sampling Inside a Polygon

Instead of using a boundbox, you can pass a polygon domain directly. Here we load Chicago community polygons from geodatasets, project them to a planar CRS, and sample points within the unioned polygon geometry.

The output CRS is set explicitly from the polygon layer.

communities = gpd.read_file(geodatasets.get_path("geoda.chicago_commpop")).to_crs(
    "EPSG:26971"
)
polygon_domain = communities.geometry.union_all()

points_gdf_in_polygon = sample_points(
    300,
    polygon=polygon_domain,
    crs=communities.crs,
    random_state=42,
)
points_gdf_in_polygon.head()

Downloading file 'chicago_commpop.zip' from 'https://geodacenter.github.io/data-and-lab//data/chicago_commpop.zip' to '/home/docs/.cache/geodatasets'.

Extracting 'chicago_commpop/chicago_commpop.geojson' from '/home/docs/.cache/geodatasets/chicago_commpop.zip' to '/home/docs/.cache/geodatasets/chicago_commpop.zip.unzip'

	geometry
0	POINT (356823.43 574469.913)
1	POINT (335851.684 588888.713)
2	POINT (359040.645 569047.015)
3	POINT (359907.224 579733.528)
4	POINT (354963.24 562642.025)

_, ax = plt.subplots(1, 1, figsize=(6, 6))
communities.boundary.plot(ax=ax, color="tab:blue", linewidth=0.7)
points_gdf_in_polygon.plot(ax=ax, color="tab:orange", markersize=5)
cx.add_basemap(ax, source=cx.providers.CartoDB.Positron, crs=communities.crs)
ax.set_title("Sampled points inside polygon domain")
ax.set_aspect("equal")
ax.axis("off")
plt.show()

Custom Sampling with a Parameterized Multivariate Normal

For concise custom distributions, you can define a generic sampler and bind parameters with functools.partial.

The example below uses NumPy’s multivariate normal sampler (rng.multivariate_normal) with fixed mean and cov.

sample_points still enforces the target domain via rejection, so any candidates outside the domain are discarded until n accepted points are collected (or max_attempts is reached).

def mvn_sampler(rng, k, *, mean, cov):
    return rng.multivariate_normal(mean=mean, cov=cov, size=k)


sampler = partial(
    mvn_sampler,
    mean=[500, -1000],
    cov=[[1200**2, 250_000], [250_000, 700**2]],
)

custom_points_gdf = sample_points(
    300,
    bbox=(-5000, -5000, 5000, 5000),
    sampler=sampler,
    random_state=42,
)

custom_points_gdf.head()

	geometry
0	POINT (300.731 -1750.261)
1	POINT (-540.447 -623.077)
2	POINT (3025.532 -1253.726)
3	POINT (397.551 -1238.484)
4	POINT (653.893 -1536.987)

_, ax = plt.subplots(1, 2, figsize=(12, 5), sharex=True, sharey=True)
points_gdf.plot(ax=ax[0], color="tab:blue", markersize=5)
ax[0].set_title("Default uniform sampling")
ax[0].set_aspect("equal")

custom_points_gdf.plot(ax=ax[1], color="tab:purple", markersize=5)
ax[1].set_title("Custom multivariate-normal sampling")
ax[1].set_aspect("equal")

plt.show()

Convert a Graph Back to GeoDataFrames

graph_to_gdf reconstructs node and edge layers from a geospatial NetworkX graph. This is useful when you want to move from graph analysis back to geospatial workflows for plotting or exporting data.

Node attributes can be preserved through the full workflow:

1. add attributes to the input GeoDataFrame,

2. pass node_attributes when creating the graph,

3. convert back with graph_to_gdf and verify the exported columns.

If you plan to export layers to GIS formats (for example GeoPackage), preserving node attributes at graph-construction time ensures they remain available in the exported node table.

points_with_attrs_gdf = points_gdf.copy()
points_with_attrs_gdf["zone"] = np.where(
    points_with_attrs_gdf.geometry.x >= 0,
    "east",
    "west",
)
points_with_attrs_gdf["weight"] = np.round(
    np.abs(points_with_attrs_gdf.geometry.x) / 1000,
    2,
)

# Preserve selected node attributes when creating the network
graph = geo_erdos_renyi_network(
    points_with_attrs_gdf,
    node_attributes=["zone", "weight"],
)

# Convert graph back to geospatial tables
nodes_gdf, edges_gdf = graph_to_gdf(graph)

/tmp/ipykernel_631/2115630749.py:13: UserWarning: Input GeoDataFrame has no CRS; storing crs=None. Downstream exports will produce GeoDataFrames with an undefined coordinate reference system.
  graph = geo_erdos_renyi_network(
/tmp/ipykernel_631/2115630749.py:19: UserWarning: Graph has no CRS; output GeoDataFrames will have an undefined coordinate reference system.
  nodes_gdf, edges_gdf = graph_to_gdf(graph)

After exporting with graph_to_gdf, the selected node attributes are present in nodes_gdf:

print(f"nodes_gdf.shape: {nodes_gdf.shape}")
nodes_gdf.head()

nodes_gdf.shape: (300, 3)

	zone	weight	geometry
0	east	2.74	POINT (2739.56 2789.964)
24	east	2.78	POINT (2783.835 3485.605)
30	east	2.45	POINT (2447.622 2348.932)
42	east	2.00	POINT (2002.651 3008.842)
44	east	3.32	POINT (3322.598 2826.241)

print(f"edges_gdf.shape: {edges_gdf.shape}")
edges_gdf.head()

edges_gdf.shape: (2331, 4)

	source	target	length	geometry
0	0	24	7263.506463	LINESTRING (2739.56 2789.964, 2783.835 3485.605)
1	0	30	2572.516557	LINESTRING (2739.56 2789.964, 2447.622 2348.932)
2	0	42	2756.278701	LINESTRING (2739.56 2789.964, 2002.651 3008.842)
3	0	44	6843.049295	LINESTRING (2739.56 2789.964, 3322.598 2826.241)
4	0	45	3750.331101	LINESTRING (2739.56 2789.964, 3047.644 2951.148)

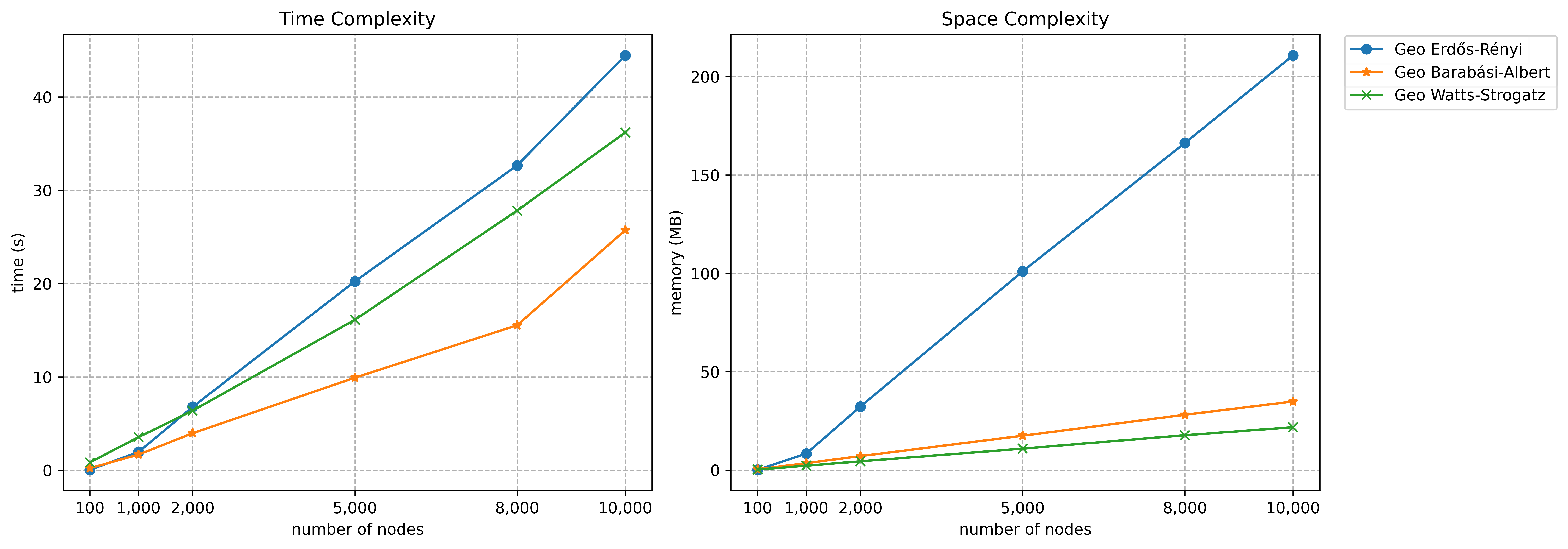

Performance

We measure and visualize the time and space complexities of our synthetic network models as they scale with different numbers of nodes. This helps understand how computational resources scale with network size.

Note that performance can vary significantly depending on the specific parameters (e.g., distance decay exponent, scaling factor, k, m, and so on) used in your network models. Here we set m=10 for geospatial Barabási-Albert network and k=10, p=0.1 for geospatial Watts-Strogatz network, with all other parameters using their default values.

Hardware Specifications

The results are based on the hardware this notebook is currently running on, with Python 3.13.2:

• CPU: 2.6 GHz 6-Core Intel Core i7

• Memory: 16 GB 2667 MHz DDR4

• Operating System: macOS Sequoia 15.3.2

Image("perf.png")

You can run the code below in a code cell to test the performance on your own hardware. This gives you a personalized estimate of how the algorithms will perform in your environment.

import time
import tracemalloc

from matplotlib import ticker

num_points = 10000
x_coords = np.random.uniform(-5000, 5000, num_points)
y_coords = np.random.uniform(-5000, 5000, num_points)
points = [Point(x, y) for x, y in zip(x_coords, y_coords)]
points_gdf = gpd.GeoDataFrame(pd.DataFrame({"geometry": points}), crs="EPSG:3857")
gdf_list = [
    points_gdf.sample(n=n, replace=False, random_state=42)
    for n in [100, 1000, 2000, 5000, 8000, 10000]
]

perf = {
    "num_nodes": [],
    "time_s": [],
    "memory_mb": [],
    "model": [],
}
for gdf in gdf_list:
    for (
        model,
        func,
        params,
    ) in zip(
        ["Geo Erdős-Rényi", "Geo Barabási-Albert", "Geo Watts-Strogatz"],
        [
            geo_erdos_renyi_network,
            geo_barabasi_albert_network,
            geo_watts_strogatz_network,
        ],
        [{}, {"m": 10}, {"k": 10, "p": 0.1}],
    ):
        perf["num_nodes"].append(len(gdf))
        perf["model"].append(model)
        tracemalloc.start()
        start_time = time.perf_counter()
        _ = func(gdf, **params)
        elapsed = time.perf_counter() - start_time
        _, peak = tracemalloc.get_traced_memory()
        tracemalloc.stop()
        perf["time_s"].append(elapsed)
        perf["memory_mb"].append(peak / 1024**2)

perf_df = pd.DataFrame(perf)

fig, ax = plt.subplots(1, 2, figsize=(12, 5))
for color, model, marker in zip(
    ["tab:blue", "tab:orange", "tab:green"],
    ["Geo Erdős-Rényi", "Geo Barabási-Albert", "Geo Watts-Strogatz"],
    ["o", "*", "x"],
):
    ax[0].plot(
        perf_df.loc[perf_df["model"] == model, "num_nodes"],
        perf_df.loc[perf_df["model"] == model, "time_s"],
        color=color,
        marker=marker,
        label=model,
    )
    ax[0].grid(True, linestyle="--")
    ax[1].plot(
        perf_df.loc[perf_df["model"] == model, "num_nodes"],
        perf_df.loc[perf_df["model"] == model, "memory_mb"],
        color=color,
        marker=marker,
        label=model,
    )
    ax[1].grid(True, linestyle="--")

ax[0].set_xticks(perf_df.loc[perf_df["model"] == model, "num_nodes"])
ax[0].set_xlabel("number of nodes")
ax[0].set_ylabel("time (s)")
ax[0].set_title("Time Complexity")
ax[0].xaxis.set_major_formatter(ticker.StrMethodFormatter("{x:,.0f}"))

ax[1].set_xticks(perf_df.loc[perf_df["model"] == model, "num_nodes"])
ax[1].set_xlabel("number of nodes")
ax[1].set_ylabel("memory (MB)")
ax[1].set_title("Space Complexity")
ax[1].xaxis.set_major_formatter(ticker.StrMethodFormatter("{x:,.0f}"))
lines, labels = ax[1].get_legend_handles_labels()
fig.legend(lines, labels, loc="upper left", bbox_to_anchor=(1.0, 0.94))
fig.tight_layout()
